Details
High intensity LED Lights save energy. Exellent replacement for any halogen spot light. Constant current device stabilizes illumination.
- CE，FCC certified，REACH and RoHS compliant
- Color temperature：6500K(standard）、3000K(optional)
- Life：40,000 hours(@L70，40°C/104°F)
- Work environment：-10°C~ 40°C(14°F~104°F))
- Cable length：3M(9.84ft)(VCTF 0.5mm² 2C)
- Ingress protection rating：IP67(lamp head only)
- Optional：Mounting Brackert(NL-23,NL-28)
 |
.jpg) |
|
 |
 |
 |
 |
 |
‧Specifications
| Type | Power source | Wattage | Lumens | Lux/m |

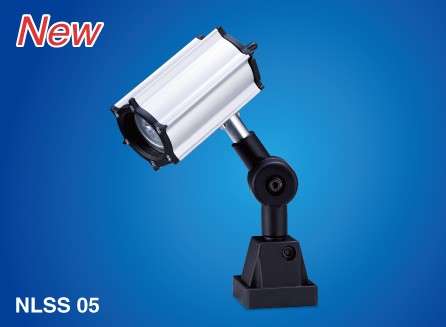

| NLSS05 | DC24V | 5W | 280 lm | 1570 Lux |
| AC100～240V | ||||
| NLS10 |
DC24V AC100～240V |
|||
| NLS15 | DC24V | 11W | 650 lm | 3310 Lux |
| AC100～240V | 13W | |||
| NLS20 |
DC24V |
11W | 750 lm | 6110 Lux |
|
AC100～120V |
13W |
※We changed the notation of the lumes from the theoretical value to the actual from 2013/6/1.
※Please contact us for information about other color temperatures available.
‧Dimensions
.jpg) |
 |
|||||||||||||||||||
 |
 |
 |
||||||||||||||||||
 |
 |
|
‧Mounting Bracket
 |
 |
.jpg)
View more about NLS Series on main site
