High intensity LED Lights save energy. Constant current device stabilizes illumination. The NLL LED lights are brighter, have a longer life, use less power and prodece less heat than fluoresent light.
CE, FCC certified, REACH and RoHS compliant
Color temperature：6500K(standard),6000K, 3000K, 591nm(optional)
Life ：40,000 hours(@L70 , 40˚C/104˚F)
Work environment ：-10℃～40℃(14˚F~104˚F)
Cable length：3M(9.84ft)(VCTF0.75mm² 2C)
Tube：Glass
Ingress protection rating：IP67
Optional： -Cable cover
-Spread cover
‧Specifications
Type
Power source
Wattage
Lumens
Lux/m
NLL13G
DC24V
10W
750Lm
190 Lux
NLL18G
DC24V
10W(12W)
750Lm
AC100V-240V
NLL36G
DC24V
20W(21W)
1500Lm
350 Lux
AC100V-240V
NLL40G
DC24V
25W(28W)
1850Lm
440 Lux
AC100V-240V
NLL13G(Lens)
DC24V
10W
730Lm
1850 Lux
NLL18G( Lens )
DC24V
10W(12W)
730Lm
AC100V-240V
NLL36G( Lens )
DC24V
20W(21W)
1450Lm
3070 Lux
AC100V-240V
NLL40G( Lens )
DC24V
25W(28W)
1850Lm
2140 Lux
AC100V-240V
NLL13TG
DC24V
14W
1050Lm
250 Lux
NLL18TG
DC24V
14W(18W)
1050Lm
250 Lux
AC100V-240V
NLL36TG
DC24V
28W(32W)
2100Lm
580 Lux
AC100V-240V
NLL13TG( Lens )
DC24V
14W
1030m
1520 Lux
NLL18TG( Lens )
DC24V
14W(18W)
1030Lm
1520 Lux
AC100V-240V
NLL36TG( Lens )
DC24V
28W(32W)
2050Lm
3180 Lux
AC100V-240V

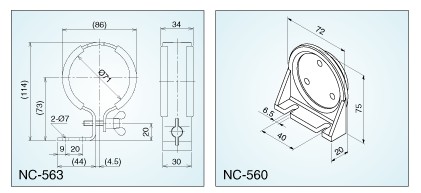

‧Mounting Bracket
‧Cable cover
‧Dimensions
Type/Length(mm)
A
B
NLL 13
415
405
NLL 18
515
505
NLL 36
700
690
NLL 40
1496
1486
